About product:

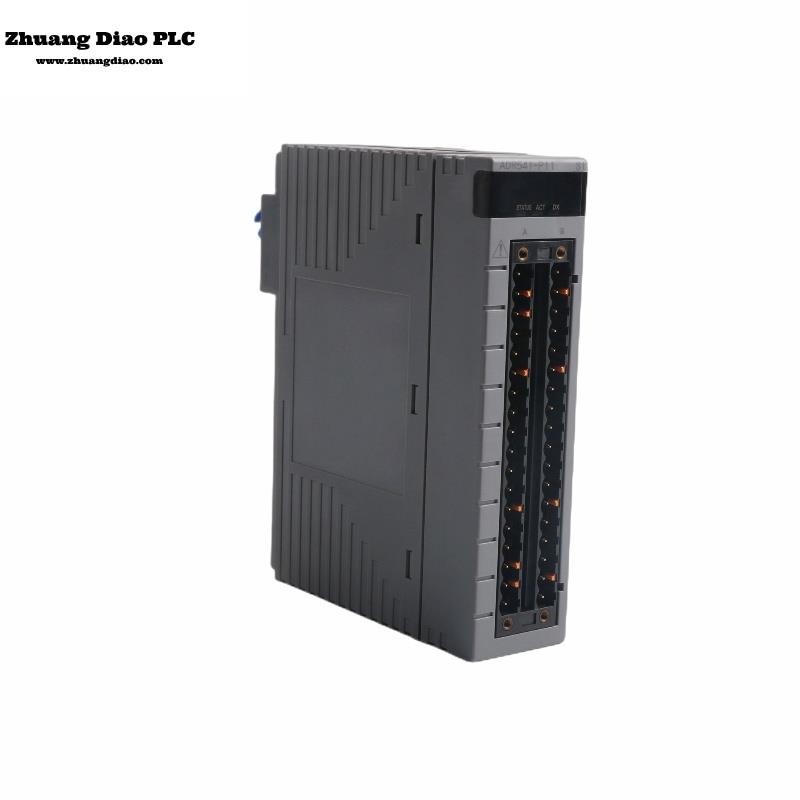

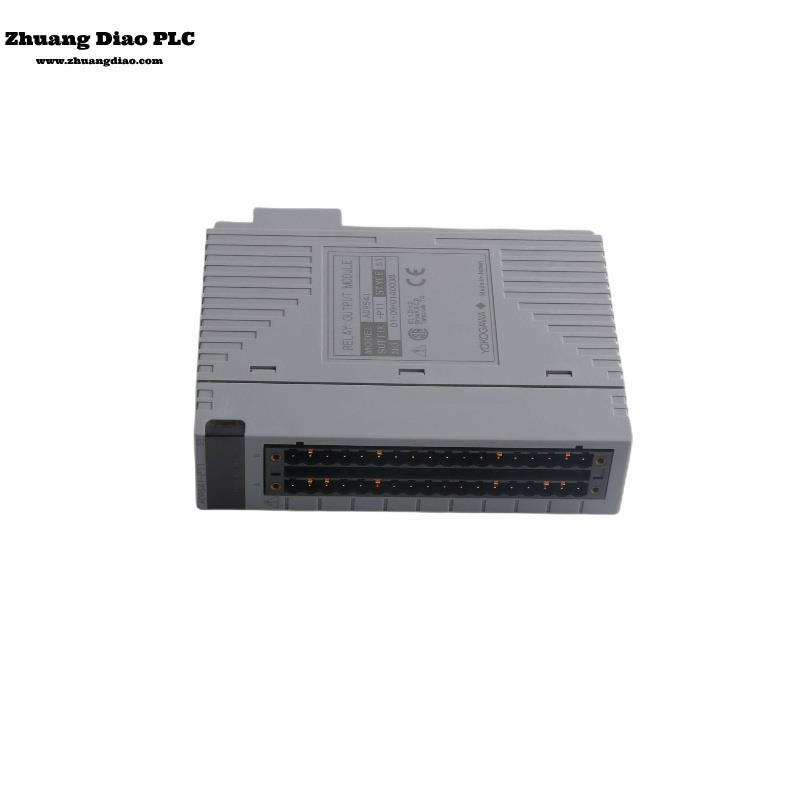

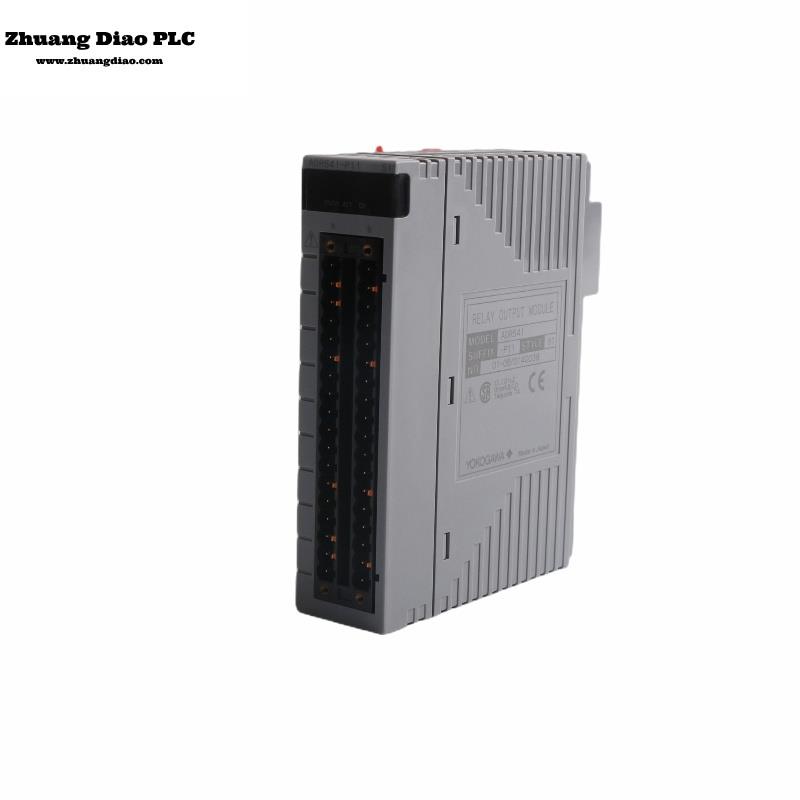

The ADR541-P11 S1 Relay Output Module is a high-performance 16-channel relay output module designed for industrial applications. It operates with an input voltage range of 24 to 110 V DC or 100 to 240 V AC, providing isolated relay contact signals for various control systems. This module is ideal for applications requiring relay outputs to control field devices, such as actuators or alarms.

The ADR541-P11 S1 supports dual-redundant configurations, enhancing system reliability. It features 16 output channels, with the ability to handle 4-channel up pulse/down pulse configurations. The module is designed to operate with a 24 V DC rated applied voltage, and it provides a maximum load current of 100 mA per channel at 26.4 V DC.

To ensure proper operation, the module includes a spark killer diode for DC relay applications and has a maximum current capacity of 8 A per common. However, the relay within the module cannot be replaced individually. If the relay reaches the end of its service life, the entire module will need to be replaced.

FAQ:
1. What is the function of the ADR541-P11 S1 Relay Output Module?
The ADR541-P11 S1 is a 16-channel relay output module used for controlling field devices. It provides isolated relay contact signals for industrial control systems. It can be used in dual-redundant configurations to increase system reliability.

2. What is the input voltage range for this module?
The module can operate with an input voltage range of 24 to 110 V DC or 100 to 240 V AC, making it suitable for a wide range of industrial applications.

3. How much current can each channel handle?
Each output channel can handle a maximum load current of 100 mA at 26.4 V DC. The module can support up to 8 A per common across all channels.
