Products Detail:

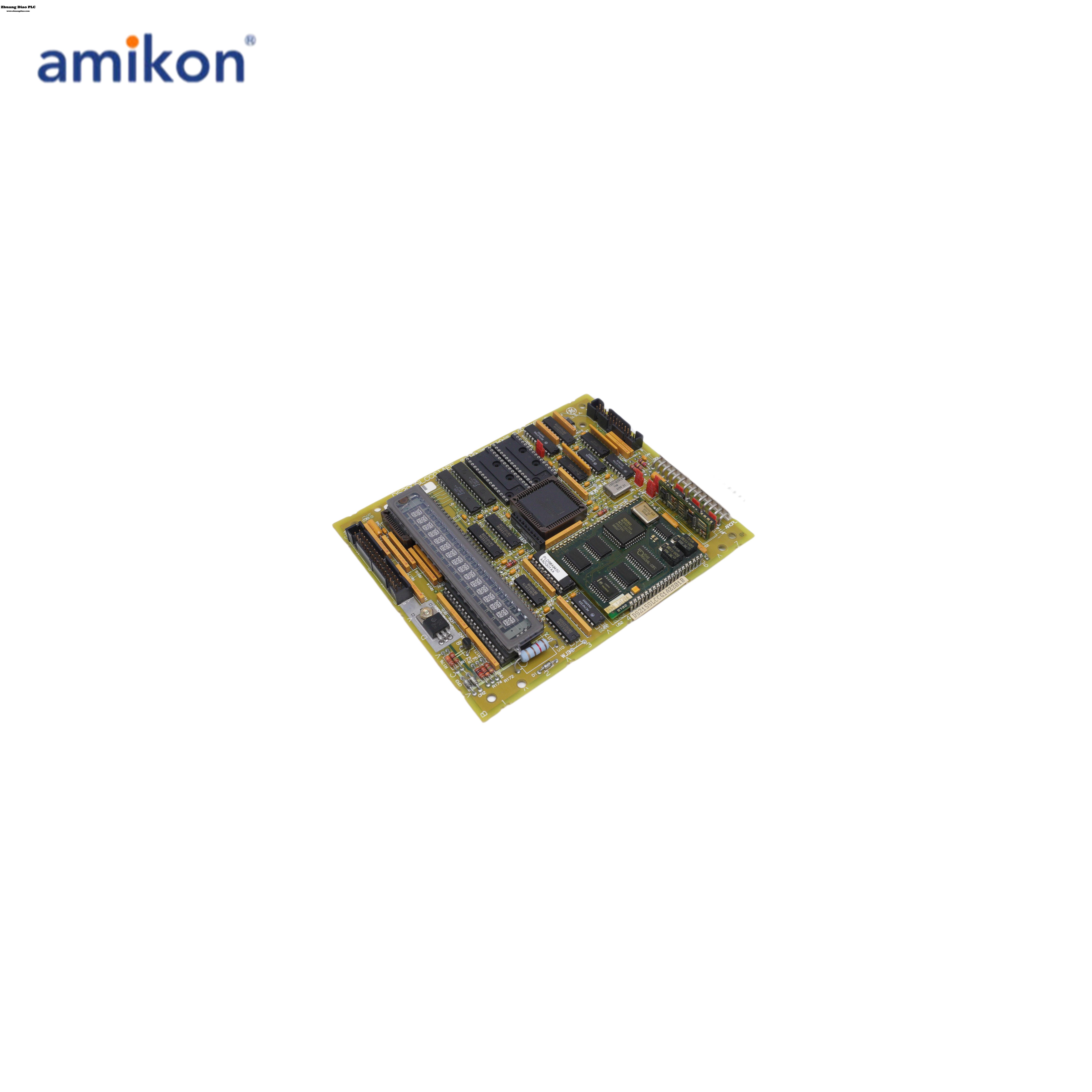

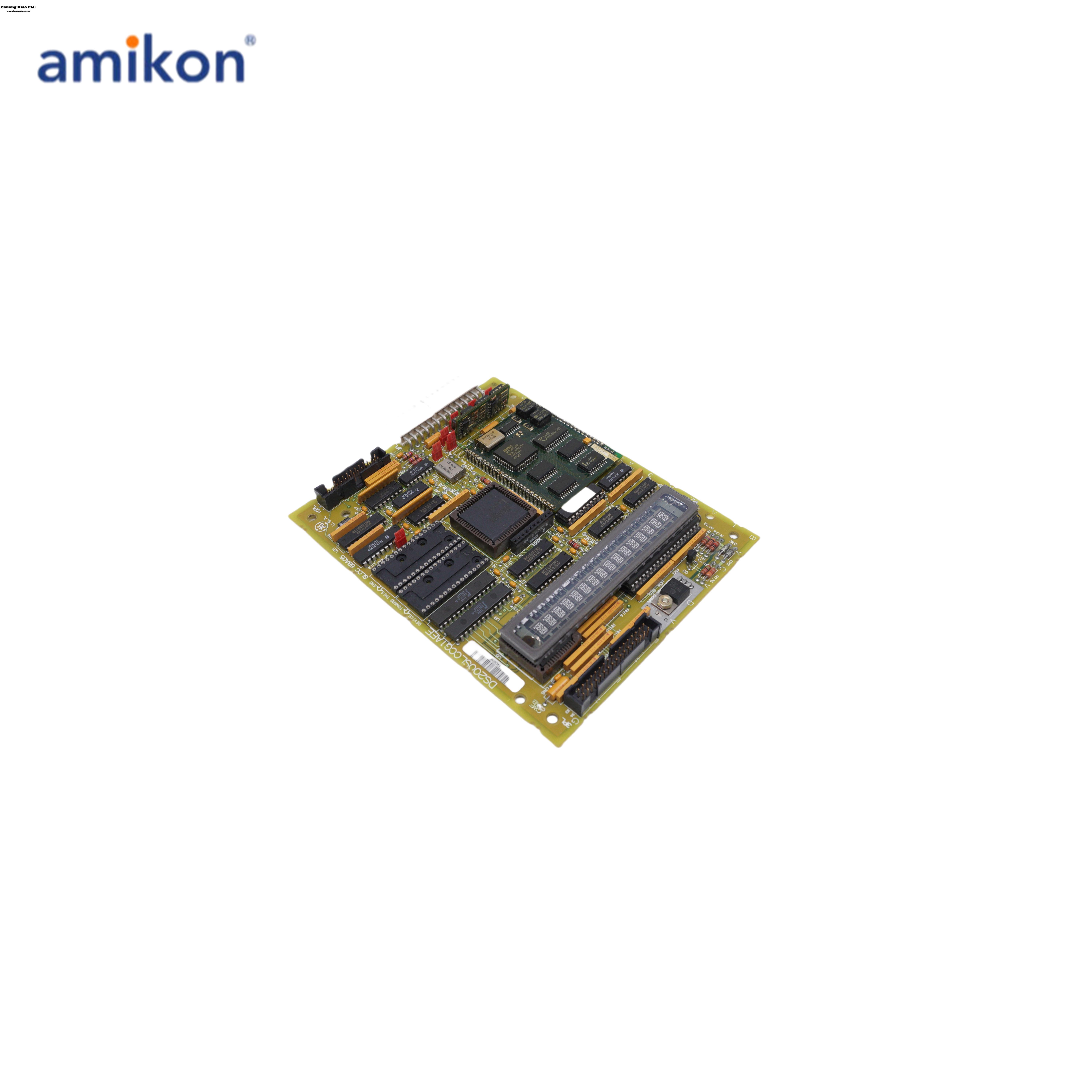

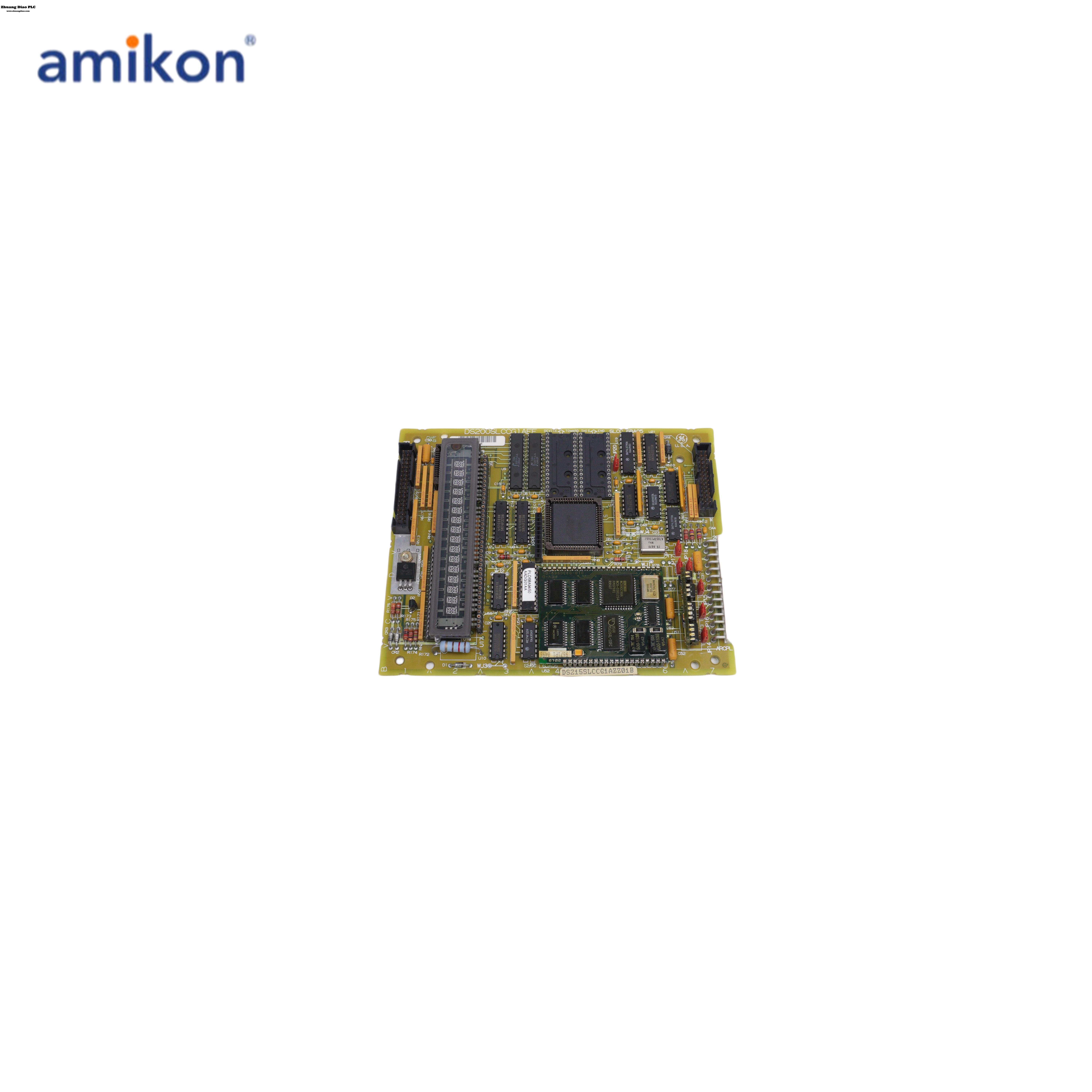

The GE LAN Communications Card DS215SLCCG1AZZ01B is a high-performance local area network communication card designed for industrial control systems. This module supports fast data transmission and reliable network connections, ensuring efficient communication with other devices. It is compatible with various communication protocols, suitable for a range of applications including real-time monitoring, data acquisition, and remote access. The modular design of this communication card makes installation and maintenance straightforward, allowing it to operate reliably in complex industrial environments. Its advanced fault diagnostics feature quickly identifies and resolves network issues, ensuring continuous operation and high reliability of the system.

SPECIFICATIONS:
Part Number: DS215SLCCG1AZZ01B
Manufacturer: General Electric
Series: EX2000
Number of relay channels: 12
Product Type: LAN Communications Card
Operating System: QNX
Power Supply voltage: 24 V dc
Mounting: DIN-rail mounting
Technology: Surface mount
Operating temperature: 40 to 70 degrees Celsius
Size: 17.8 cm high x 33.02 cm
Availability: In Stock
Country of Manufacturer: United States (USA)

Board Connections:
Five connectors (marked _PL) connect to the other controller boards, external signals, and the network. These are the connectors to other boards:

1.2PL Connector: This connector is responsible for connecting ±5, 15, and 24 V dc input/output (I/O) signals between various components. The Power Supply/Interface Board (IMCP, DCI, SDCI, or DCFB), the Drive Terminal Board or Simple Drive Terminal Board, and the Drive Control card establish connections using this connector. It enables the exchange of power and I/O signals required for communication and coordination between these boards.

2.3PL Connector: The 3PL connector is used to connect the inputs from the Drive Control Card. It allows the Drive Control Card to transmit input signals to the SLCC, enabling communication and coordination between these two components. It relies on these inputs to perform its control functions effectively.

3.10PL Connector: This connector serves as the interface for input/output (I/O) signals between the LAN I/O Terminal Board and the Card. It enables communication between the LAN card and the LAN I/O Terminal Board, facilitating the exchange of data and signals over the network. This connector plays a vital role in integrating the LAN Card into the networked system and allows for remote monitoring and control capabilities.

4.ARCPL Connector: The ARCPL connector establishes input/output (I/O) connections between the DLAN (Distributed Local Area Network) and ARCNET signals and the Card. This connector allows for the transmission of signals related to DLAN and ARCNET protocols, enabling communication with other devices or systems utilizing these protocols. It provides connectivity options for specific network configurations or protocols employed in the system.

5.KPPL Connector: The KPPL connector facilitates input/output (I/O) connections between the Programmer Module keypad and the Card. It enables the exchange of data and signals between the card and the Programmer Module keypad. This connector allows the user to input commands, configurations, or other instructions through the keypad, which are then processed and executed.
