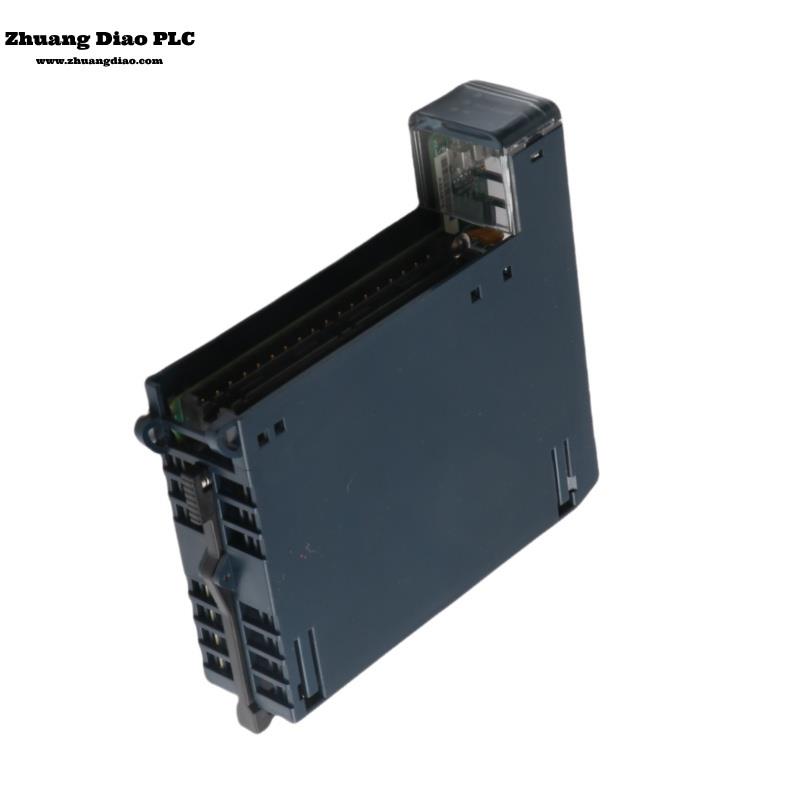

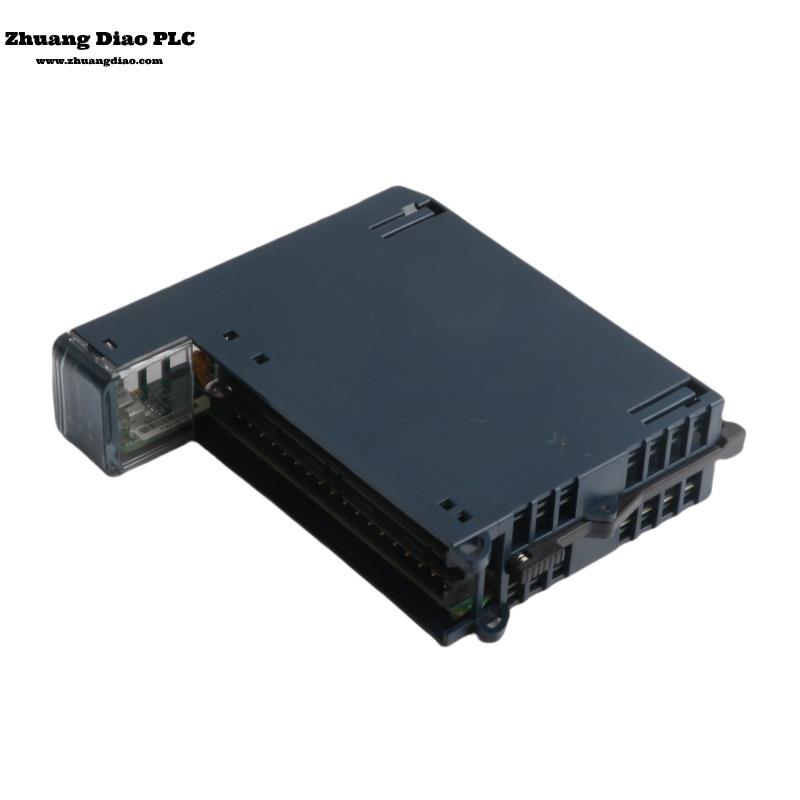

The IC695ALG608 is an analog input module from the PACsystem RX3i platform. This module is able to provide up to Eight (8) input channels when configured for single-ended wiring and Four (4) input channels for differential input wiring. It supports a variety of input signals such as +/-10 VDC, 0-10 VDC, +/- 5VDC, 0-5 VDC, 1-5 VDC and 0-20 mA, 4-20 mA and +/- 20mA input signals with built-in 24-bit Analog to Digital Converter (ADC) that translates received analog data to either integer or floating point data. The IC695ALG608 is installed to an RX3i universal backplane. It occupies a single slot of the rack with current draw 330 mA maximum @ 5.0V +5% / -2.5% and 600 mA maximum @ 3.3V +5% / -3%. This module is used with an RX3i Central Processing Unit (CPU) firmware version 3.0 or later and configured using Machine Edition version 5.0 SP3 and later. Available filter options for each input channel includes 8Hz, 12Hz, 16Hz, 40Hz, 200Hz, 500Hz which are mainly used to normalize analog readings and eliminate rapid fluctuations. The IC695ALG608 is compatible for use with a variety of terminal blocks such as Box-style (IC694TBB032), Extended Box-style (IC694TBB132), Spring-style (IC694TBS032), or Extended Spring-style (IC694TBS132) terminal Block. This module does not have external jumpers for setting module operation instead, parameters are defined via software configurable parameters. In addition, this module features full-autocalibration, on-board error checking, open circuit detection, alarm settings, module fault reporting, interrupts for channel alarm and fault and other equally important features.
8

Our products are all genuine imported goods, which can be tested, worry-free after-sales service, and quality guaranteed.

We have tens of thousands of models and tens of thousands of stocks in stock, welcome to consult!

*Direct purchase from abroad, genuine products, preferential prices, after-sales warranty, complete models, and advantageous inventory.

*All spare parts have a warranty period of 1 year and are professionally tested and certified.

*If you need to order more than 1 product, please contact us and we can provide you with a discount.

*If you find that other suppliers offer lower prices for the same products, we are also willing to provide you with further discounts based on their prices.

*If you have any other questions, please feel free to contact us.

*Please let us know if you have any needs for spare parts, and we can provide you with further assistance. We are waiting for your inquiries.

*Same product, different price and service.

*Your choice is our driving force.

Main business: PLC and DCS system spare parts modules of world-renowned brands, superior supply, sufficient inventory

Foxboro: I/A Series system, FBM full series (field input/output module)

Sequential control, ladder logic control, accident recall processing, digital-to-analog conversion, input/output signal processing,

Data communication and processing, etc.

Westinghouse: 1C31 series DCS system, CPU, OVATION system, WDPF system,

WEStation system spare parts.

Triconex: Redundant fault-tolerant control system, modern fault-tolerant controller based on triple modular redundancy (TMR) structure.

EMERSON: Modules, cards, drives and other spare parts.

XYCOM: XVME series

Bently: 3500/3300 system.

Rockwell: ICS system.

ABB: PM full range DCS system, IGCT high voltage inverter series, industrial robot spare parts DSQC series, INFI 90, etc.

Bailey: BRC series DCS system, etc.

Allen-Bradley: 1756, 1785, 1771, 1746 full range system, etc.

Yokogawa: CP series, etc.

Honeywell: TK/TC/CC systems, etc.

Reliance: 57C series, etc.

Schneider: 140 series processors, control cards, power modules, etc.

Modicon: AS series PLC system spare parts.

Siemens: 6ES5/6ES7414/6ES7415/6ES7416 series PLC system spare parts,

Siemens MOORE, Siemens Simatic C1, Siemens CNC system, etc.

Motorola: MVME 162, MVME 167, MVME1772, MVME177, etc.

XYCOM: I/O, VME board and processor, etc.

GE: IC698/IC697 full range of PLC systems, modules, cards, drivers and other spare parts.

Yaskawa: servo controller, servo motor, servo driver.

Bosch Rexroth: Indramat, I/O modules, PLC controller, drive module, etc.

Woodward: SPC valve position controller, PEAK150 digital controller.
