Part No.: IS220PVIBH1A
Manufacturer: General Electric
Product Type: Vibration Monitor (PVIB) pack
Series: Mark VIe

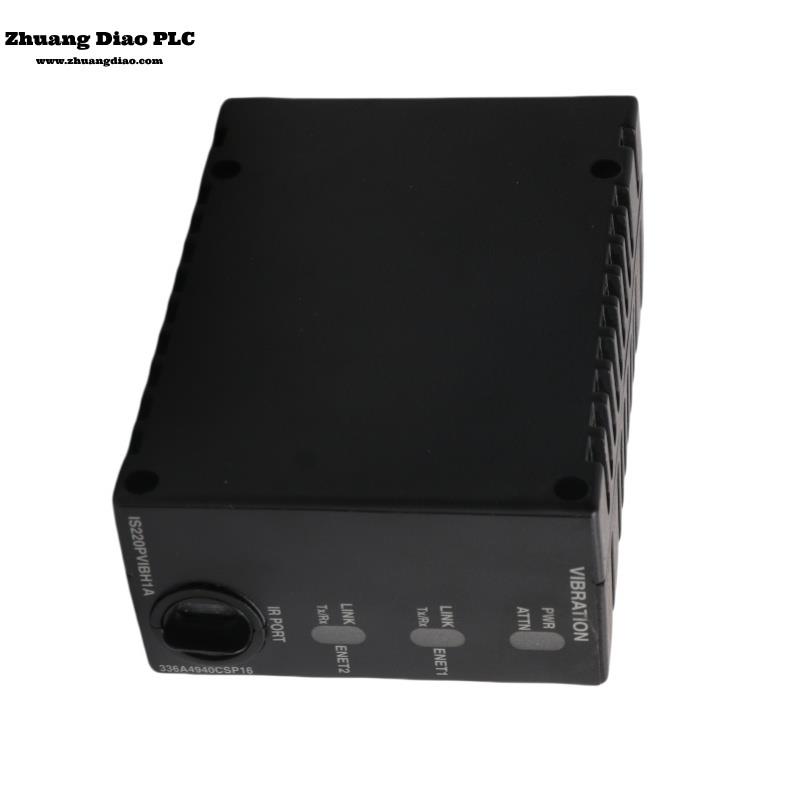

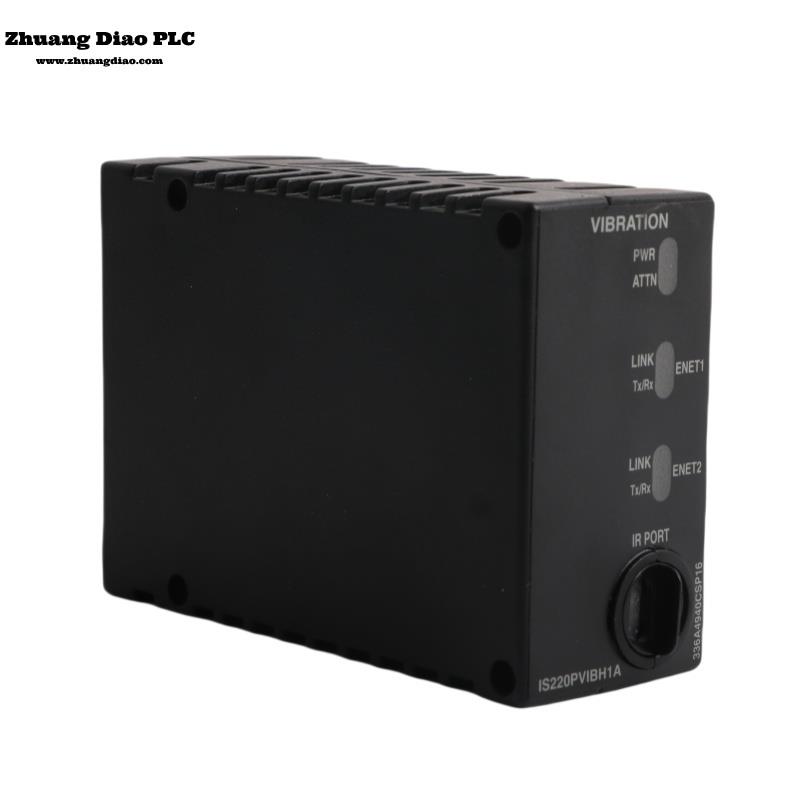

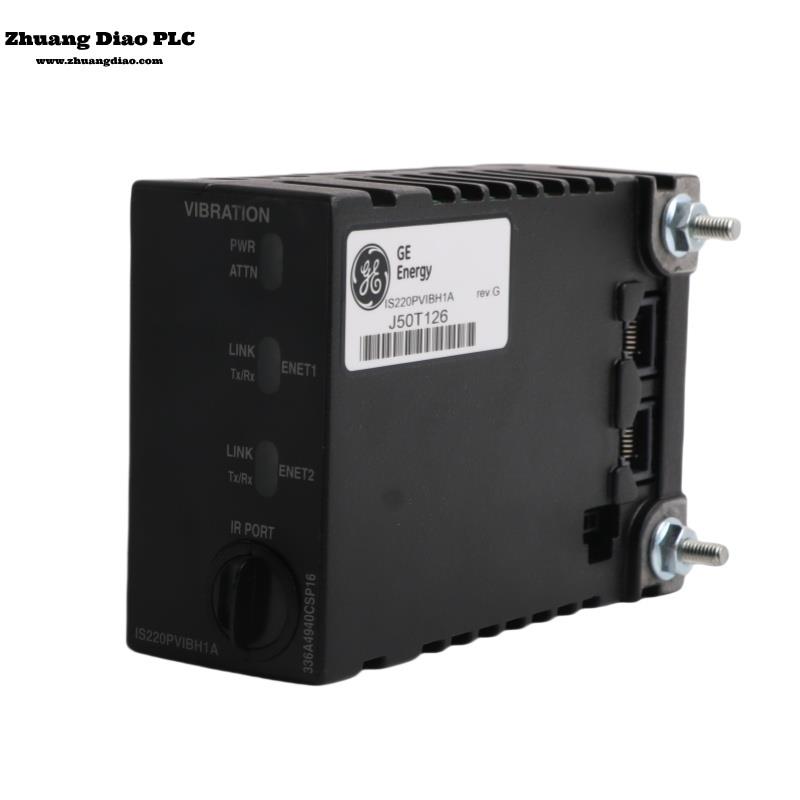

IS220PVIBH1A is a Vibration Monitor (PVIB) pack developed by GE under the Mark VIe control system. The Vibration Monitor (PVIB) pack connects one or two I/O Ethernet networks to the TVBA vibration terminal board electrically. The pack includes a processor board, an acquisition board, and a daughterboard, which are all common to all Mark VIe distributed I/O packs.

The pack reads vibration or proximity information from the following sensor types using channels 1 through 8: Proximitors, integrated output accelerometers (Channels 1-3 only), Velomitor, or seiseismic channels 9 through 12 only support proximitors, while channel 13 can input either a Keyphasor signal-type or a proximity-type signal.
Dual RJ45 Ethernet ports and 3-pin power input are used to power the pack. For frame rates slower than 100 Hz, the PVIB enables twin Ethernet networks. It supports frame rates of 3.125, 6.25, 12.5, 25, 50, and 100 Hz over an Ethernet network.
A DC-37 pin connector connects directly to the matching terminal board connector for output. Indicator LEDs are used to display visual diagnostics.

IS220PVIBH1A Compatibility
Dual RJ45 Ethernet ports and 3-pin power input are used to power the pack. For frame rates slower than 100 Hz, the PVIB enables twin Ethernet networks. It supports frame rates of 3.125, 6.25, 12.5, 25, 50, and 100 Hz over an Ethernet network. A DC-37 pin connector connects directly to the matching terminal board connector for output. Indicator LEDs are used to display visual diagnostics.

IS220PVIBH1A Installation
Follow the procedure to install the pack
Secure the terminal board you want to use.
Connect the PVIB I/O pack to the terminal board connectors directly.
Use the threaded studs close to the Ethernet ports to mechanically secure the packs.
Depending on the system configuration, connect one or two Ethernet wires. The pack can be used with either port. When using dual connections, ENET1 should be connected to the network linked with the R controller.
Connect the pack to the power source by plugging in the connector on the side.
Configure the I/O pack as needed using the ToolboxST* application.
Check that the N28 Power Supply daughterboard on the TVBA is properly placed in the TVBA connector.
