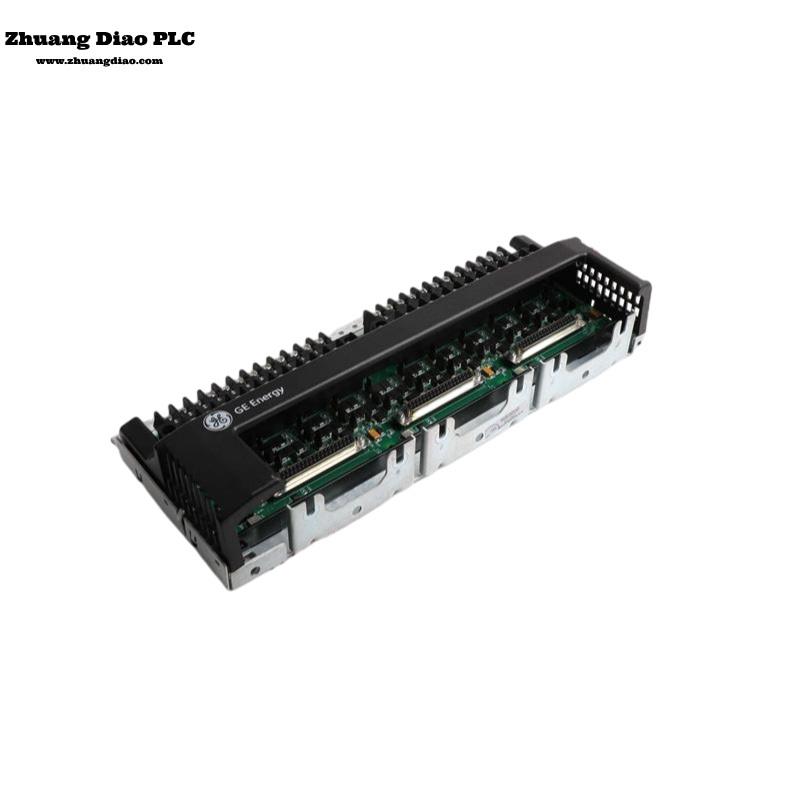

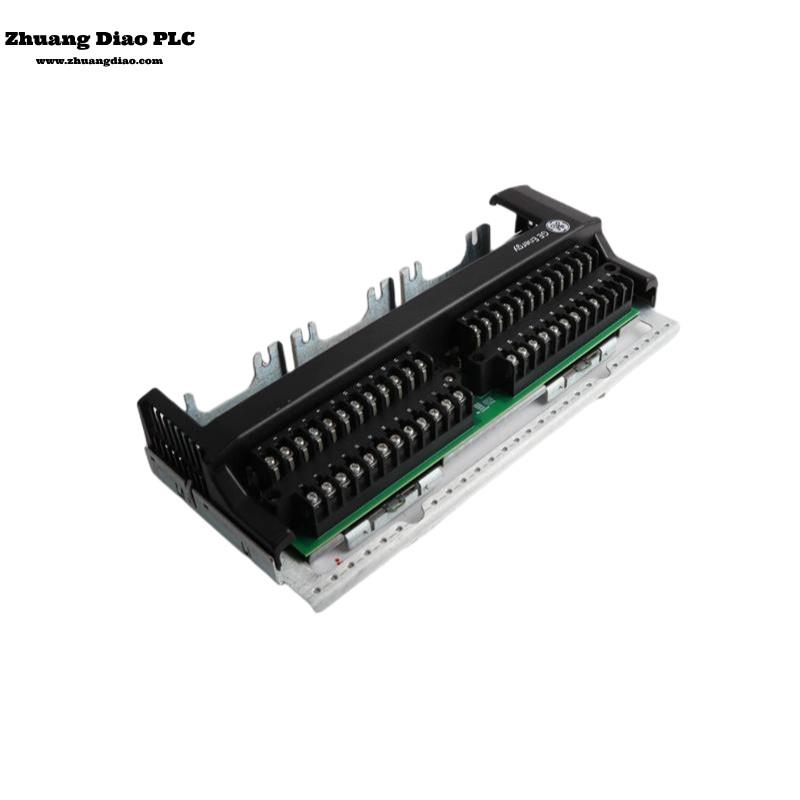

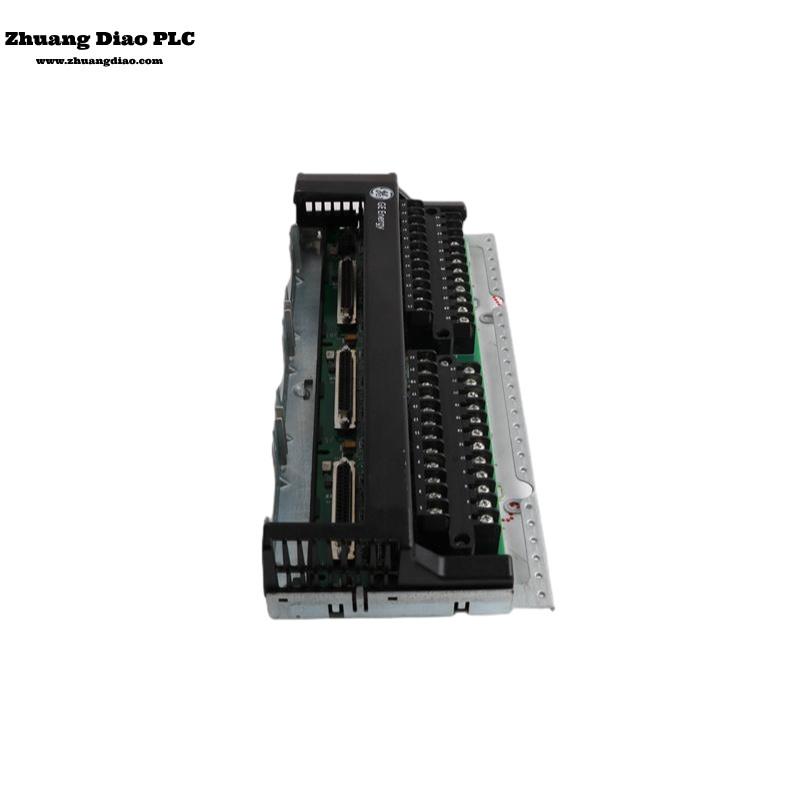

IS200TBAIS1C is a safety-certified Analog Input/Output terminal board. TBAI consists of 3 DC-37 pin connections for connecting to the I/O processors. A single connector is used to accommodate simplex applications (JR1). All three connectors are compatible with TMR applications. The input signals for the R, S, and T controls are fanned to the three connections in TMR applications.

TMR outputs aggregate the currents of the three connected output drivers and use a measuring shunt to calculate the overall current. The total current signal is then presented to the I/O processors for regulation to the requested setpoint.
TBAIS1C is a safety-certified product. In the Mark VIeS SIS, YAIC does not support the 200 mA output option. TMR applications can use the same terminal board.

IS200TBAIS1C Installation
The following analog I/O types can be accommodated by TBAI:
Analog input, two-wire transmitter;
Analog input, three-wire transmitter;
Analog input, four-wire transmitter;
5 V, 10 V dc analog input
0-20 mA analog output
0-200 mA analog output

IS200TBAIS1C Operation
Each 24 V dc power output is rated for continuous output of 21 mA and is safeguarded against short circuit operation. The control system's 24 V dc supply can power the transmitters/transducers, or they can be powered separately. The JO jumper determines the current output type. Each output is monitored by diagnostics, and if a fault cannot be cleared by a command from the processor, a suicide relay in the I/O controller disconnects the relevant output.
