Zhuang Diao PLC
|
Brand |
GE Fanuc |
|
Series |
Versamax |
|
Manufacturer |
Emerson Automation / GE Fanuc (former) |
|
Manufacturer |
GE Intelligent Platforms (Former); Emerson Automation |
|
Part Number |
|
|
Series |
VersaMax I/O |
|
No. of channels |
Thirty-Two (32) |
|
Product Description |
Discrete Input Module |
|
Product type |
Discrete Input Module |
|
No. of input groups |
Four (4) |
|
Module ID |
80088008 |
|
No of Channels |
Thirty-Two (32) |
|
No. of channel per group |
Eight (8) |
|
Number of Points |
32 Inputs |
|
No. of groups |
Four (4) |
|
Input signal, nominal |
24 VDC |
|
Number of groups |
4 |
|
No. of channels per group |
Eight (8) |
|
Input signal, range |
0-30 VDC |
|
Input Voltage |
0-30 Volts DC, 24 Volts DC nominal |
|
Output Voltage Range |
18-30 VDC |
|
Current Draw |
50 mA, maximum |
|
Input Impedance |
10K ohms |
|
Output voltage, nominal |
24 VDC |
|
Input response time |
0.5 ms, maximum |
|
Group to Group Isolation |
250 VAC continuous, 1500 VAC for 1 min. |
|
ON state Voltage |
15-30 VDC |
|
Filter time |
0 ms, 1.0 ms, 7.0ms |
|
Point to Point Isolation |
None |
|
OFF state voltage |
0-5 VDC |
|
On-state voltage |
15-30 VDC |
|
LED Indicators |
One LED per point, OK LED |
|
ON state current |
2.0 - 5.5 mA |
|
Off-state voltage |
0-5 VDC |
|
Backplane Current Consumption |
5 Volts, 50 milliamps |
|
OFF state current |
0-0.5 mA |
|
On-state current |
2.0 - 5.5 mA |
|
External Power Supply |
None |
|
Response time |
0.5 ms |
|
Off-state current |
0 - 0.5 mA |

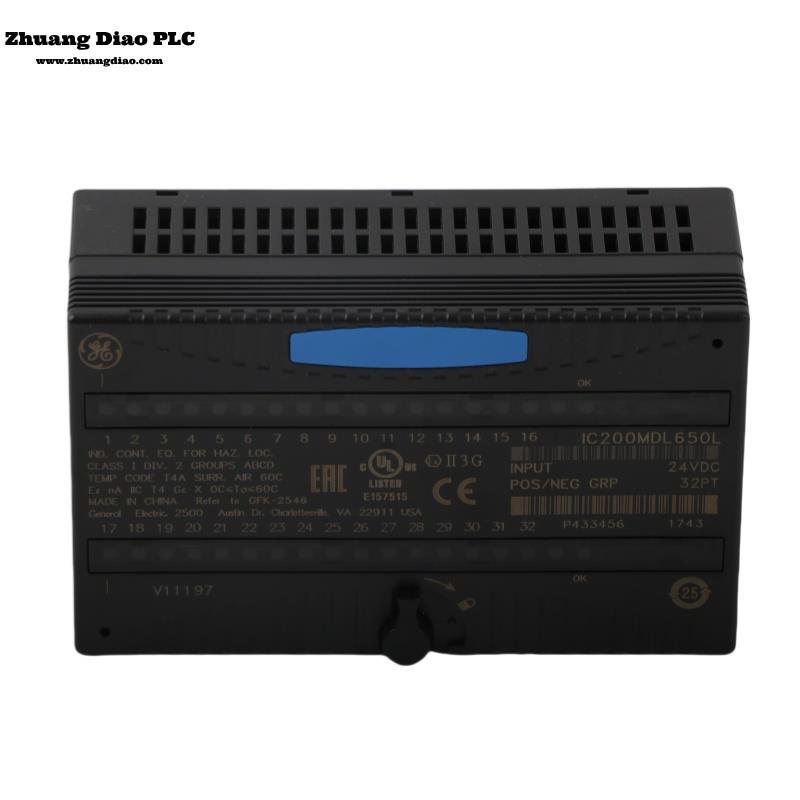

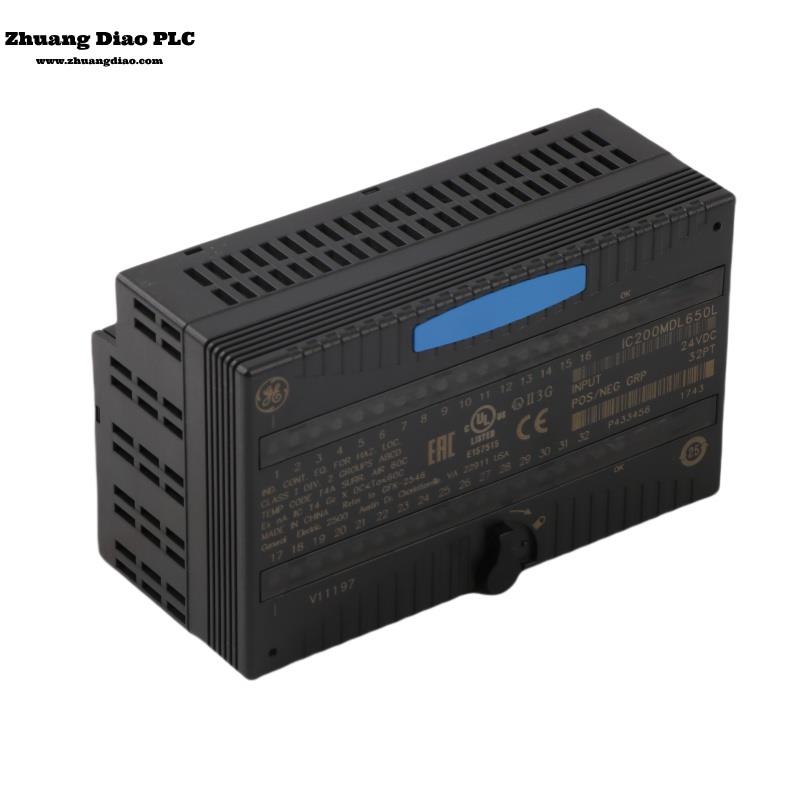

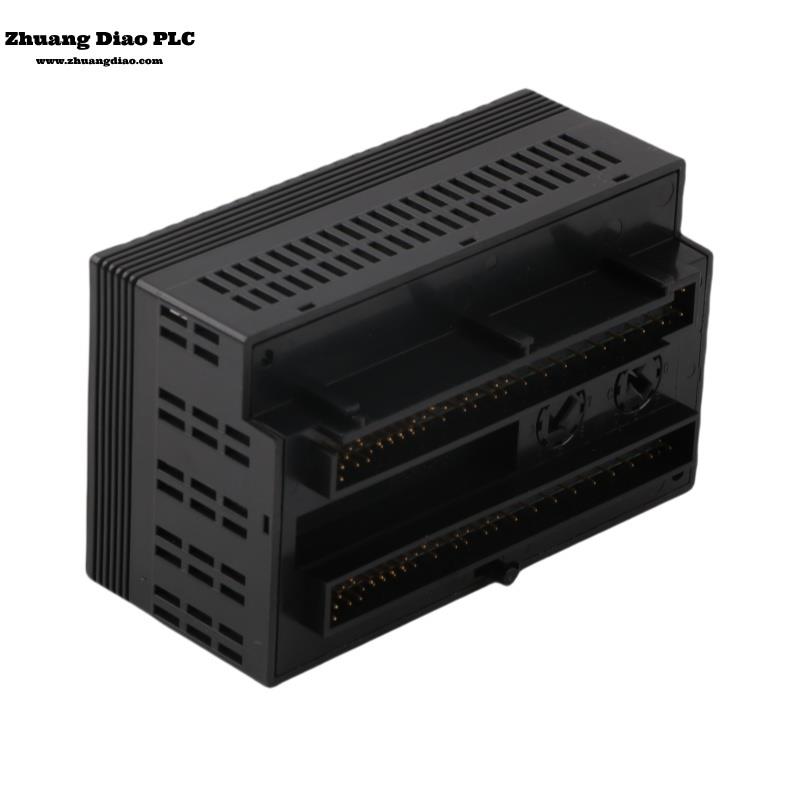

The IC200MDL650 is a high-density discrete input module from the GE VersaMax I/O platform. This module features Thirty-Two (32) input channels that support positive and negative logic wiring configuration, arranged in Four (4) groups of Eight (8) input channels per group. This module comes with group-to-group isolation rated 250 VAC, continuous and 1500 VAC for 1 minute duration. This type of module is typically used in a wide variety of industrial application, primarily used to integrate input devices such as pushbutton, auxiliary contacts, limit switches, level switches, proximity sensors and similar binary or On/Off devices. The input channels of the IC200MDL650 are designed to accept an input voltage signal range of 0-30 VDC with 24 VDC as the nominal input. The module’s On-state voltage is +15 to +30 VDC and Off state voltage of 0 to +5 VDC while the On state and Off state current ratings are w.0 to 5.5 mA and 0 to 0.5 mA, respectively. For both On to Off and Off to On channel state transitions, the response times are typical which is 0.5 ms, maximum. In addition, input channels are provided with configurable input filter times which may be used to eliminate debounce, false positive and false negative signals. Specifically, the available filter settings are 0 ms, 1.0 ms and 7.0 ms with 1.0 ms as the default setting. This module is installed to a standard DIN rail and support horizontal and vertical orientation. It is provided with individual channel status LED indicator to depict the actuation state of each input channel.
