Functional Description

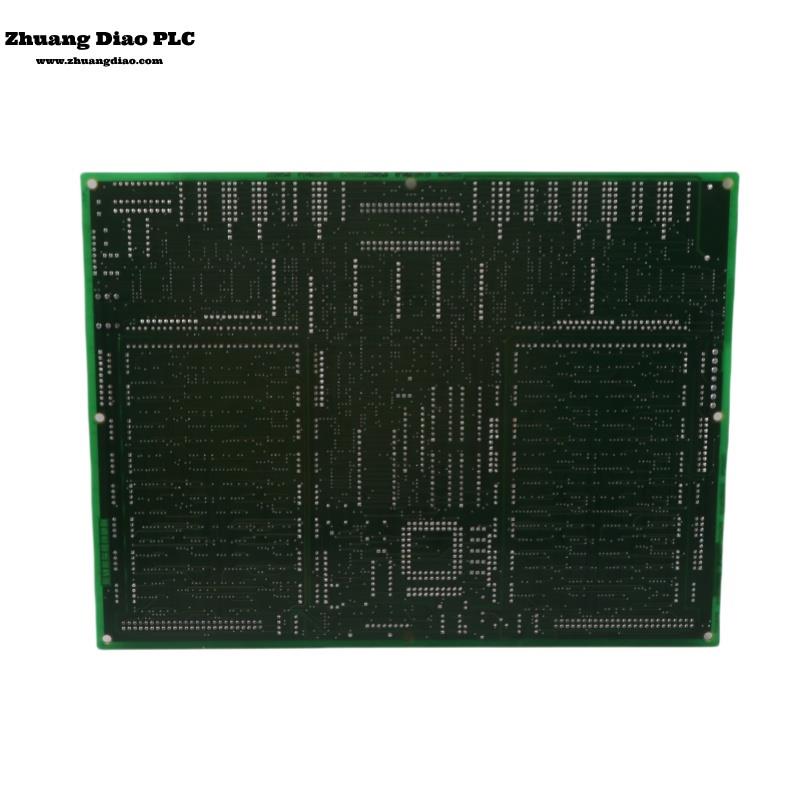

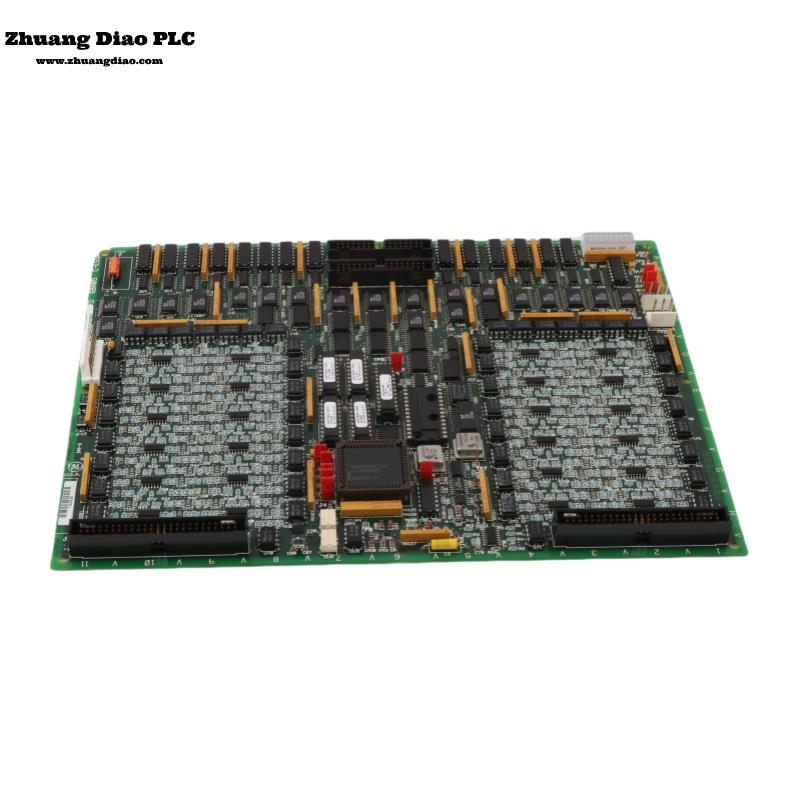

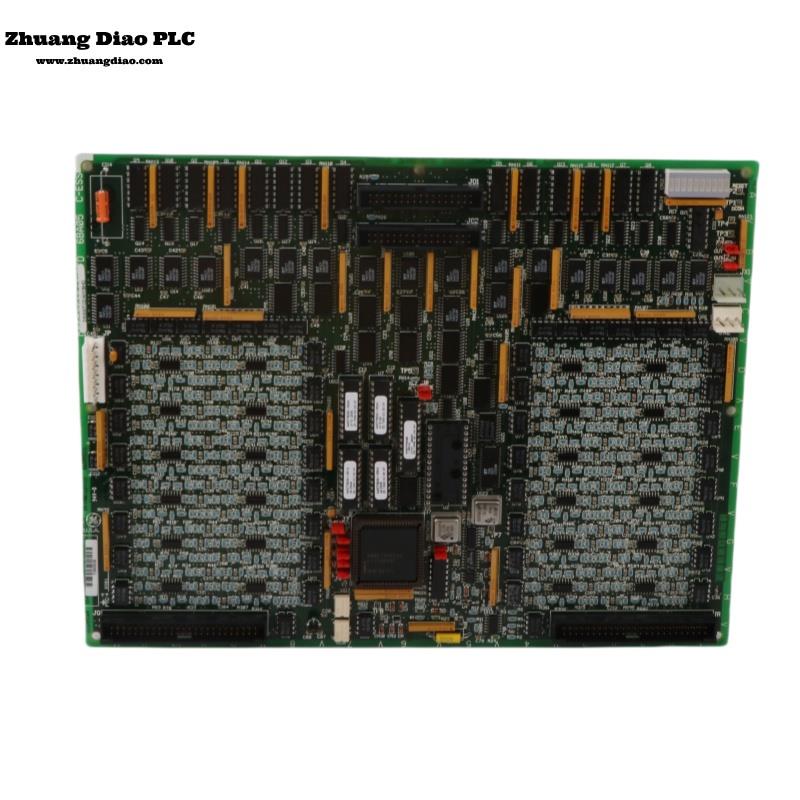

DS200TCDAH1BJE is a Digital I/O Board developed by GE. It is a part of the Mark V control system. The Digital IO Board process both digital contact input signals and contact output signals (such as relay or solenoid controls), enabling smooth communication between different terminal boards and control modules.

Contact Input Circuits
The board is designed to carry contact input signals from the DTBA and DTBB terminal boards. These signals are transmitted via JR and JQ connectors, which connect to the corresponding sockets on the DTBA and DTBB boards, respectively. Once the input signals are received, the board performs several critical functions:

Signal Conditioning: The TCDA board conditions the signals, ensuring that they are in the appropriate form for further processing by the system.
Time Tagging: The TCDA board time-stamps any change of state in the signals, which is useful for tracking the timing of input changes in real-time applications.
Signal Transmission: The processed signals are then carried to the IONET through the JX1 or JX2 connectors, depending on system configuration. The use of either connector enables reliable communication of the signals to other system components.
In addition, contact signal inversions are handled through software configuration. Using the I/O configuration constants, users can adjust settings for signal inversions, allowing the system to interpret and respond to input signals as needed.
