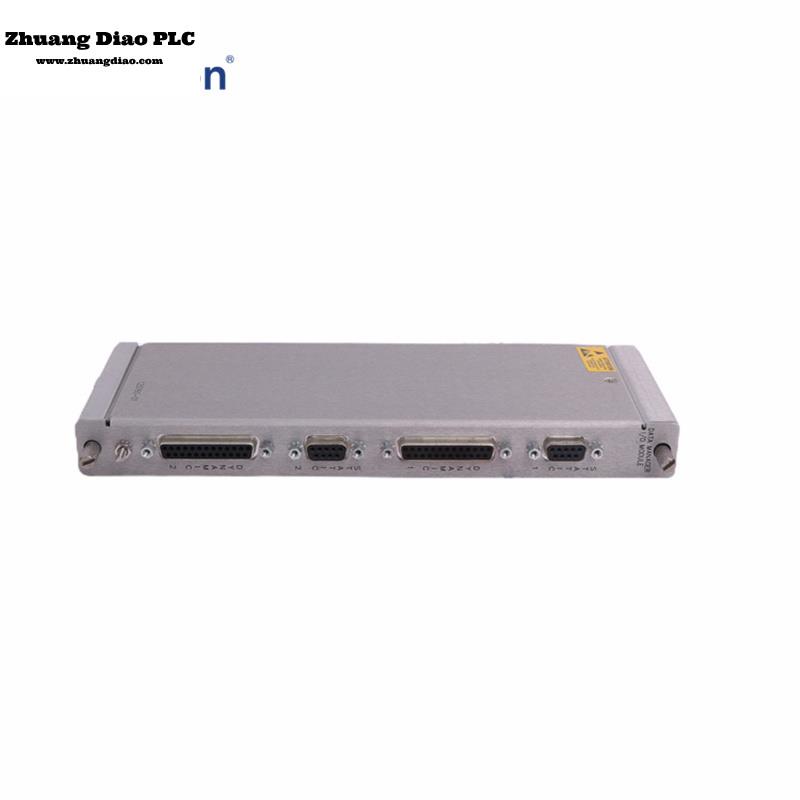

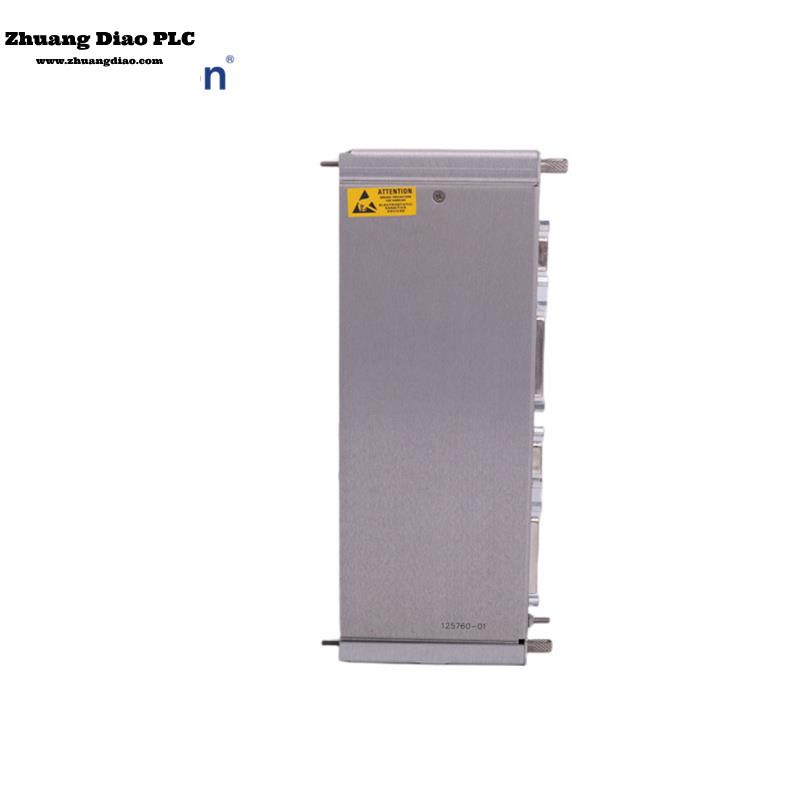

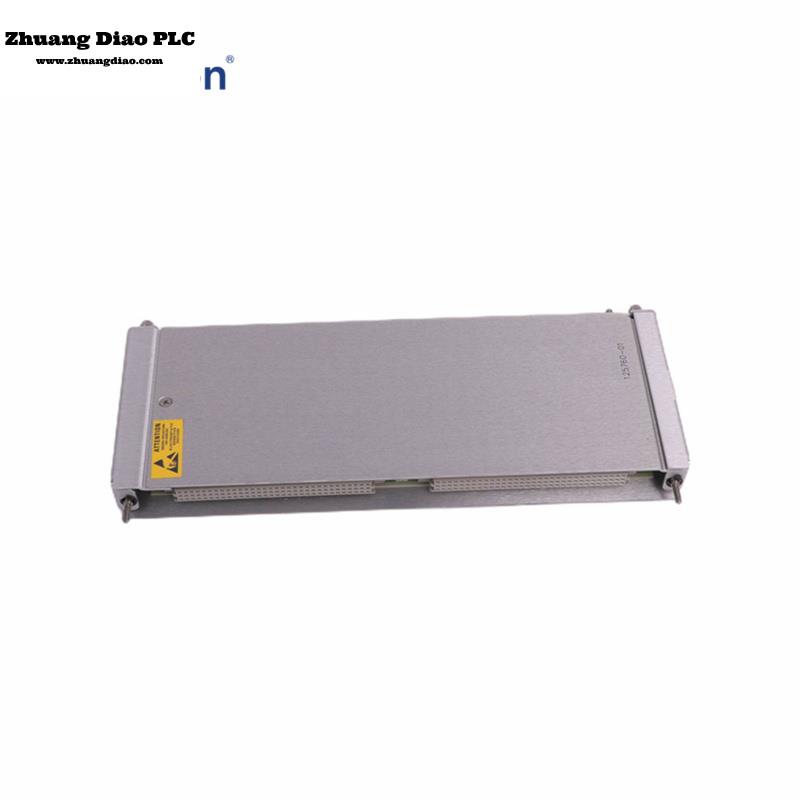

125760-01 is a Data Manager I/O Module developed by Bently Nevada. It is a part of the Bently Nevada 3500/20 Series Rack Interface Module (RIM). The principal interface to the 3500 rack is the GE / Bently Nevada 3500/20 Series Rack Interface Module (RIM). It offers a proprietary protocol for configuring the rack and retrieving machinery data. The RIM must be placed in rack slot 1. (next to the power supplies).

125760-01 Functional Description
The RIM is compatible with Bently Nevada external communications processors such as TDXnet, TDIX, and DDIX. While the RIM performs certain activities that are shared by the entire rack, it is not part of the important monitoring channel and has no effect on the overall monitoring system's appropriate, regular performance. One RIM is required per rack. The 3500 System requires a TMR RIM for Triple Modular Redundant (TMR) applications.
The TMR RIM performs "monitor channel comparison" in addition to all of the normal RIM features. Monitor voting is implemented in the 3500 TMR configuration using the settings indicated in the monitor options.
The TMR RIM continuously compares the outputs of three redundant monitors using this mechanism. If the TMR RIM determines that the information from one of those monitors is no longer within a predefined percentage of the information from the other two monitors, it will flag the monitor as being in error and record an event in the System Event List.

8

Our company's products are all genuine imported goods from abroad, which can be tested, worry-free after-sales service, and quality guaranteed.

We have tens of thousands of models and tens of thousands of stocks in stock, welcome to consult!

*Direct purchase from abroad, genuine products, preferential prices, after-sales warranty, complete models, and advantageous inventory.

*All spare parts have a warranty period of 1 year and are professionally tested and certified.

*If you need to order more than 1 product, please contact us and we can provide you with a discount.

*If you find that other suppliers offer lower prices for the same products, we are also willing to provide you with further discounts based on their prices.

*If you have any other questions, please feel free to contact us.

*Please let us know if you have any needs for spare parts, and we can provide you with further assistance. We are waiting for your inquiries.

*Same product, different price and service.

*Your choice is our driving force.
