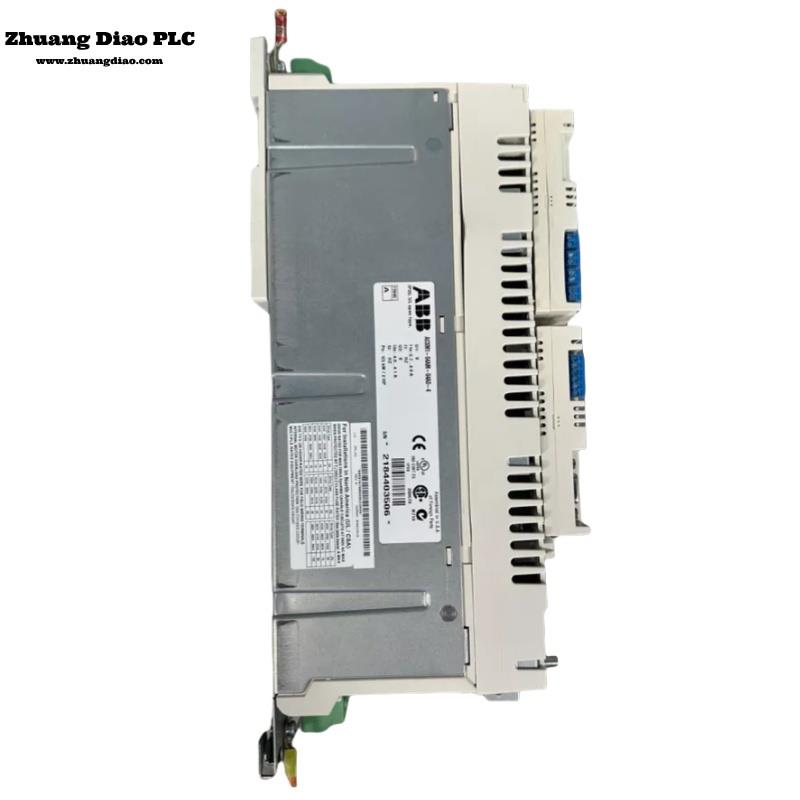

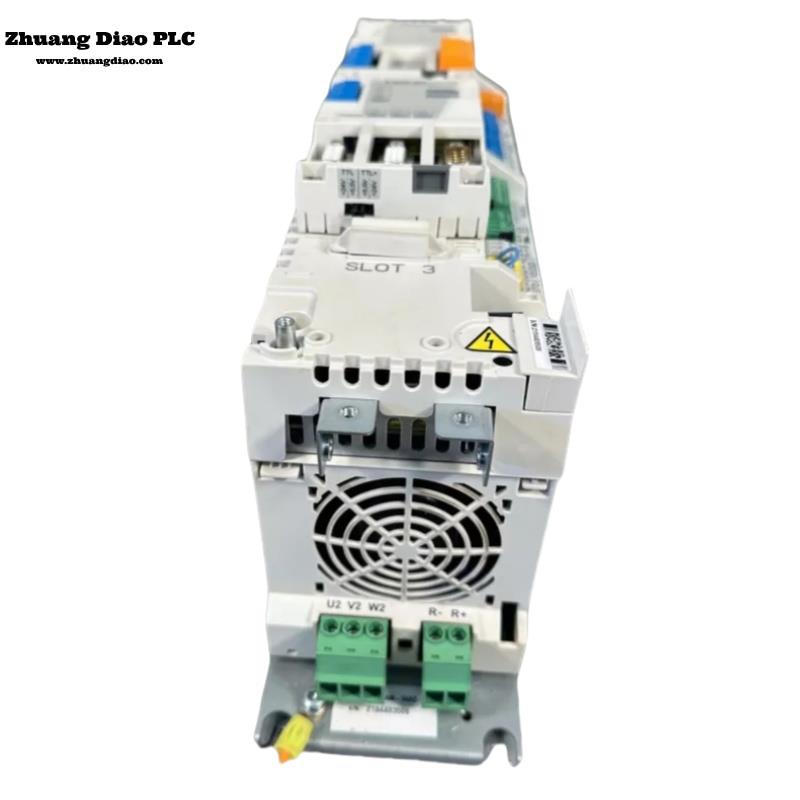

The ACSM1-04 is an IP20 drive module for controlling AC motors. It is to be installedinto a cabinet by the customer. The ACSM1-04 either has an air-cooled heatsink, or
is to be installed on a ìcold plateî cooling element.

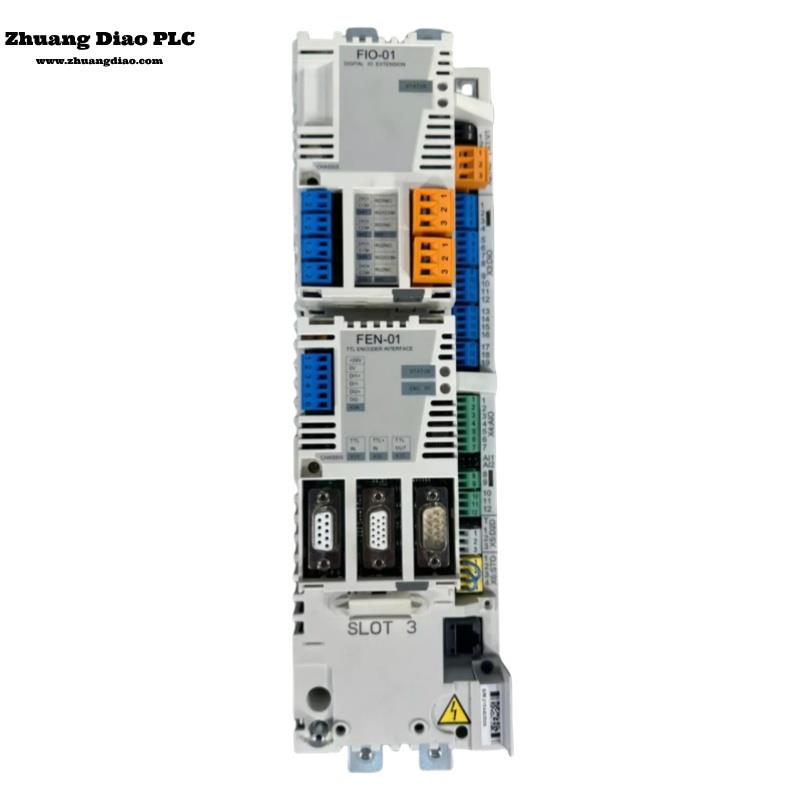

The ACSM1-04 is available in several frame sizes depending on output power. Allframe sizes use the same control unit (type JCU).

The ACSM1-04 is to be mounted in an upright position. The wall the drive is to bemounted on must be as even as possible, of non-flammable material and strongenough to carry the weight of the drive. The floor/material below the drive must benon-flammable.

FAQ

1. What motors can the ACSM1-04AM-04A0-4 control?
This drive module can control asynchronous induction motors, permanent magnet motors, and ABB synchronous reluctance motors.

2. How do I install the ACSM1-04AM-04A0-4?
The ACSM1-04AM-04A0-4 requires installation in a control cabinet. You will need tools such as a drill, screwdriver, and appropriate mounting hardware. Detailed instructions are provided in the product manual for mechanical and electrical installation.

3. What type of protection does the ACSM1-04AM-04A0-4 offer?
The drive module is designed with protection features such as overcurrent protection, short-circuit protection, thermal overload protection, and fault diagnostics, ensuring safe operation.
