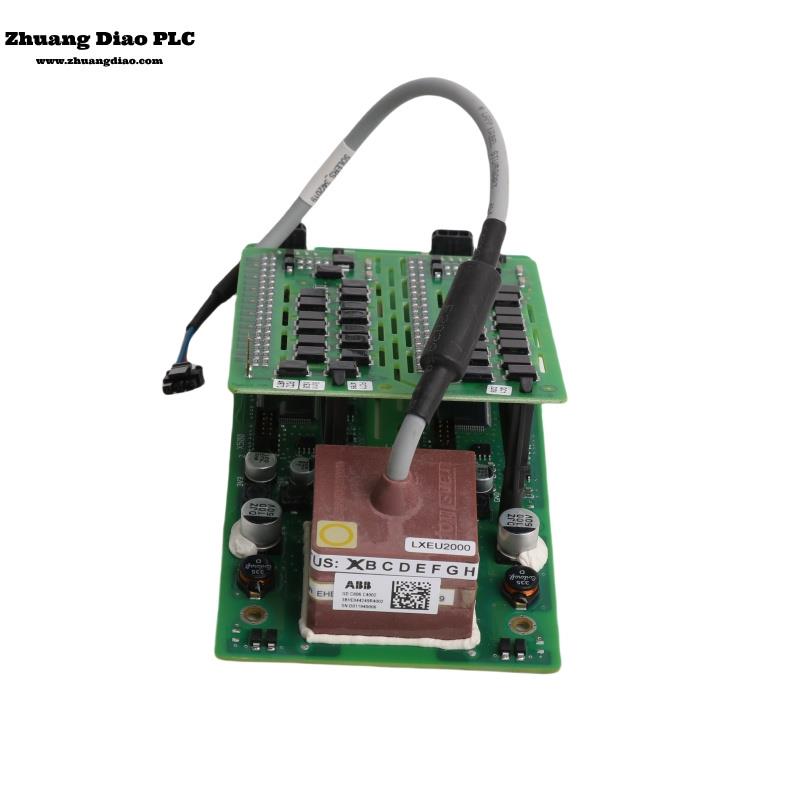

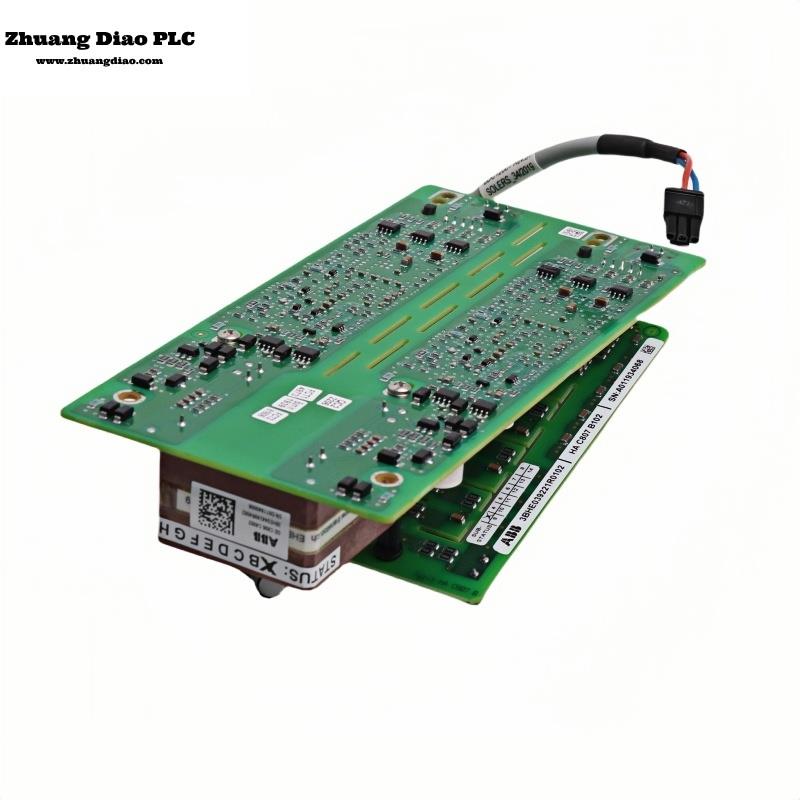

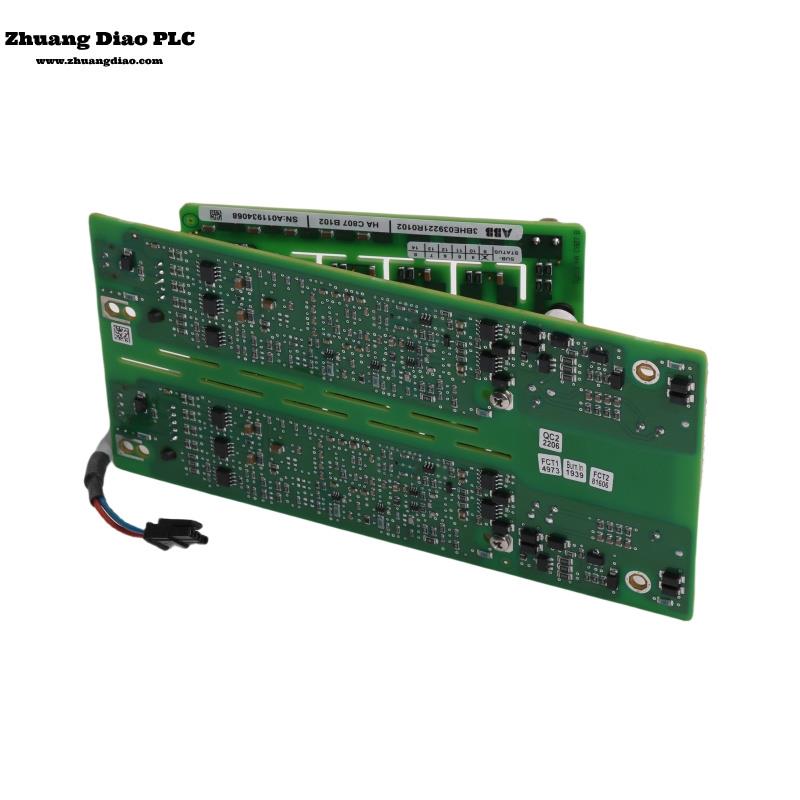

The 3BHE044249R04002 (GDC806 C4002) is a Gate Drive Control (GDC) board designed for ABB's medium- to high-power inverters, such as the ACS800, ACS1000, or AC800PEC series. This critical component ensures precise IGBT switching control, providing essential protection functions like overcurrent (OCP), overvoltage (OVP), and short-circuit (SCP) detection. It features fiber-optic communication interfaces for reliable signal transmission and integrates LED indicators for real-time fault diagnostics. The board operates on +24V DC and is built for industrial environments with robust EMC/ESD protection.

FAQ
1. What is the GDC806 C4002 board used for?
The GDC806 C4002 is a Gate Drive Control (GDC) board used in ABB industrial inverters (e.g., ACS800, ACS1000, AC800PEC) to control IGBT power modules, ensuring safe switching and protection against faults like overcurrent, overvoltage, and short circuits.

2. Where is this board typically installed?
It is mounted inside ABB drive cabinets, often alongside IGBT modules (e.g., 5SXE/5SNE series) and connected via fiber-optic cables for signal communication.

3. What are common failure symptoms?
Inverter trips with IGBT fault errors (e.g., "Overcurrent," "Short Circuit").
No output voltage despite input power.
LED fault indicators (red/green lights) showing abnormal status.
Burnt components (capacitors, resistors) or visible damage.
